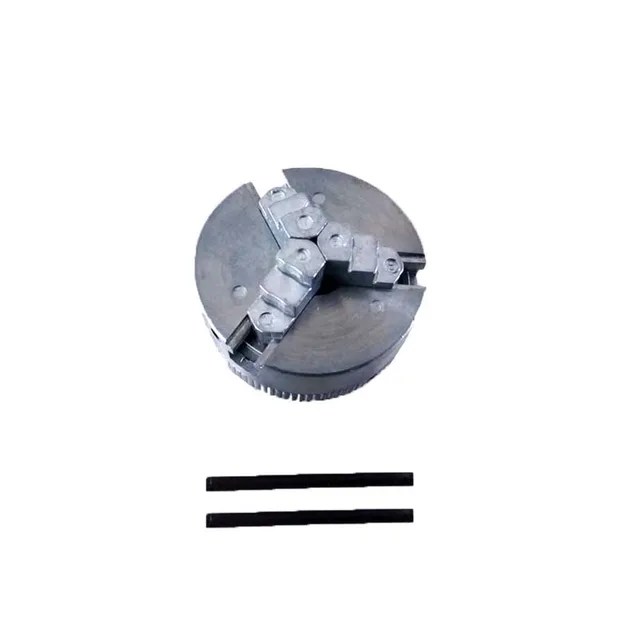

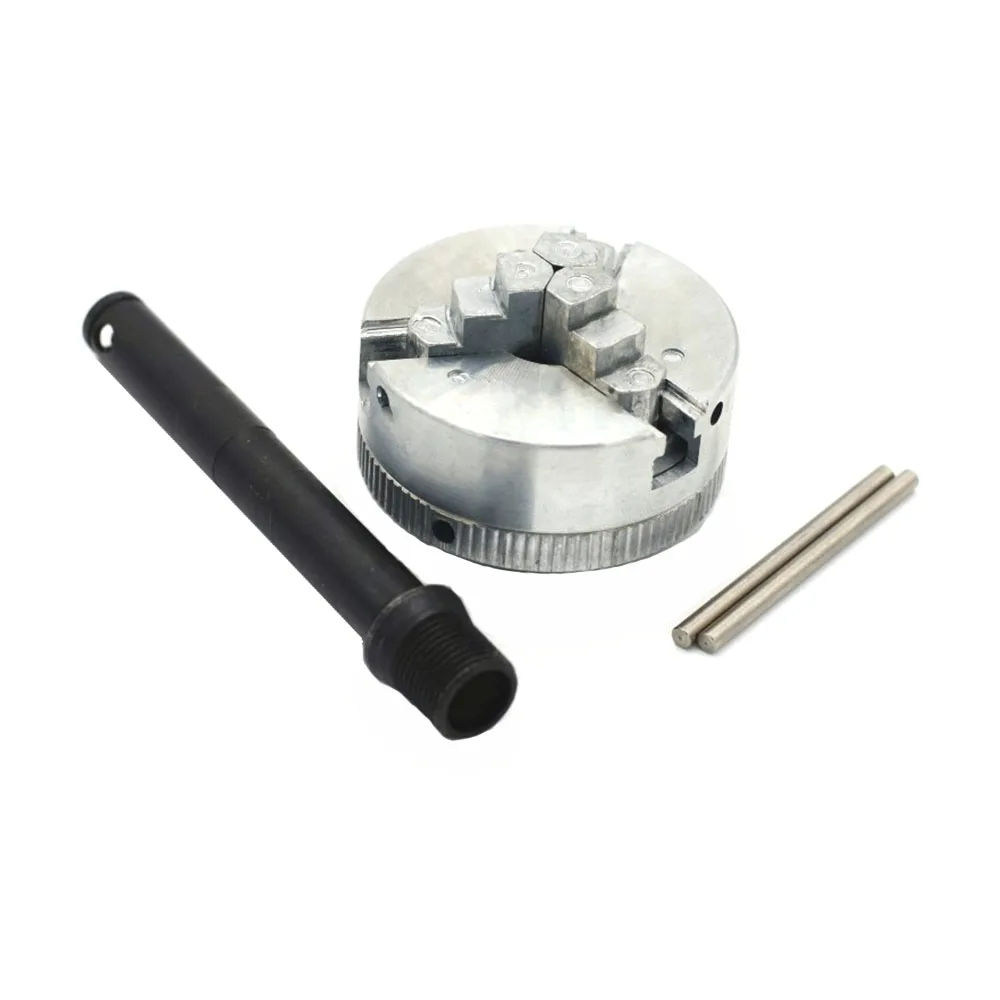

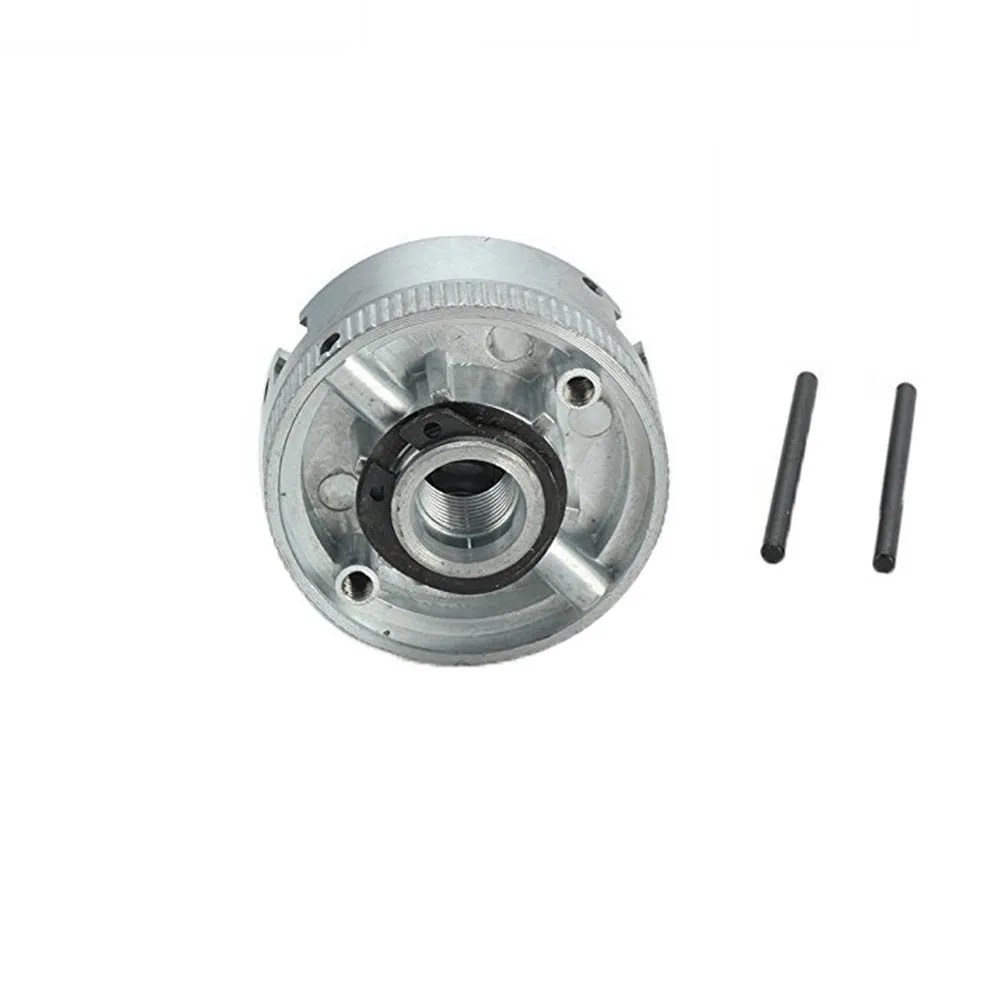

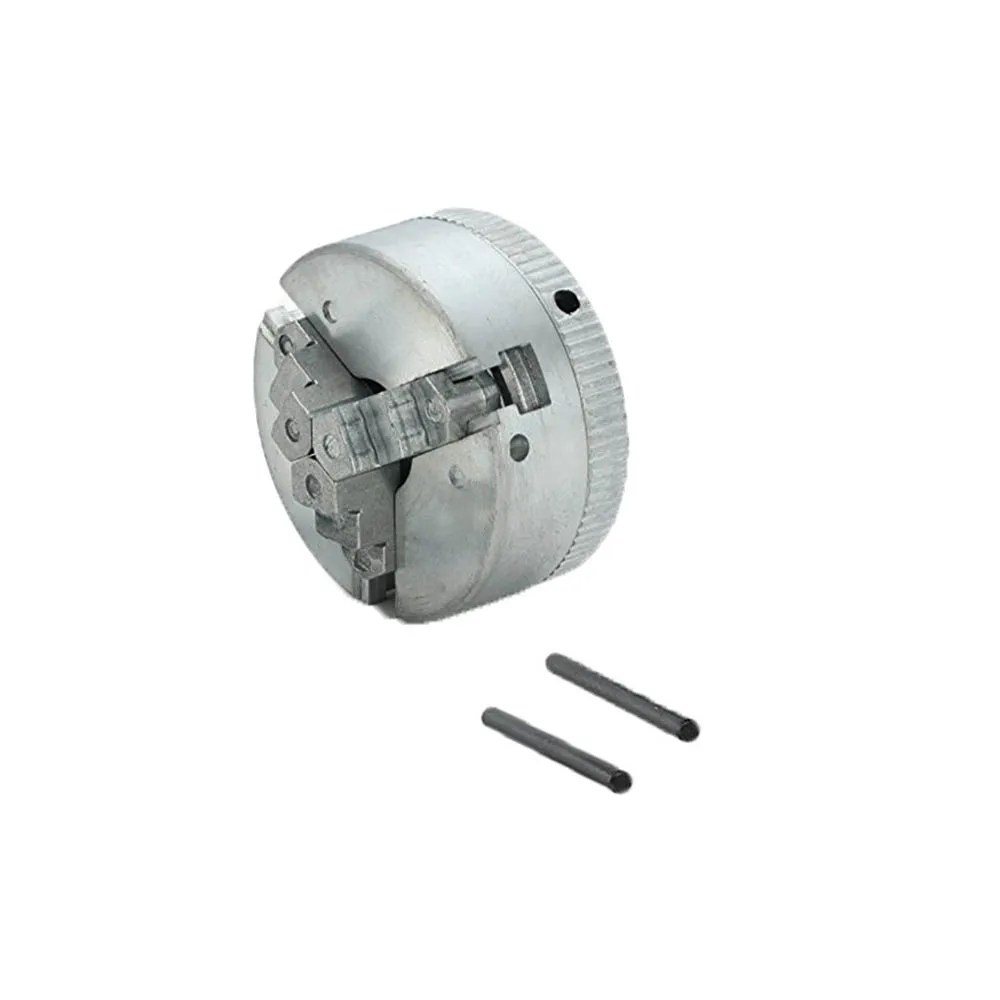

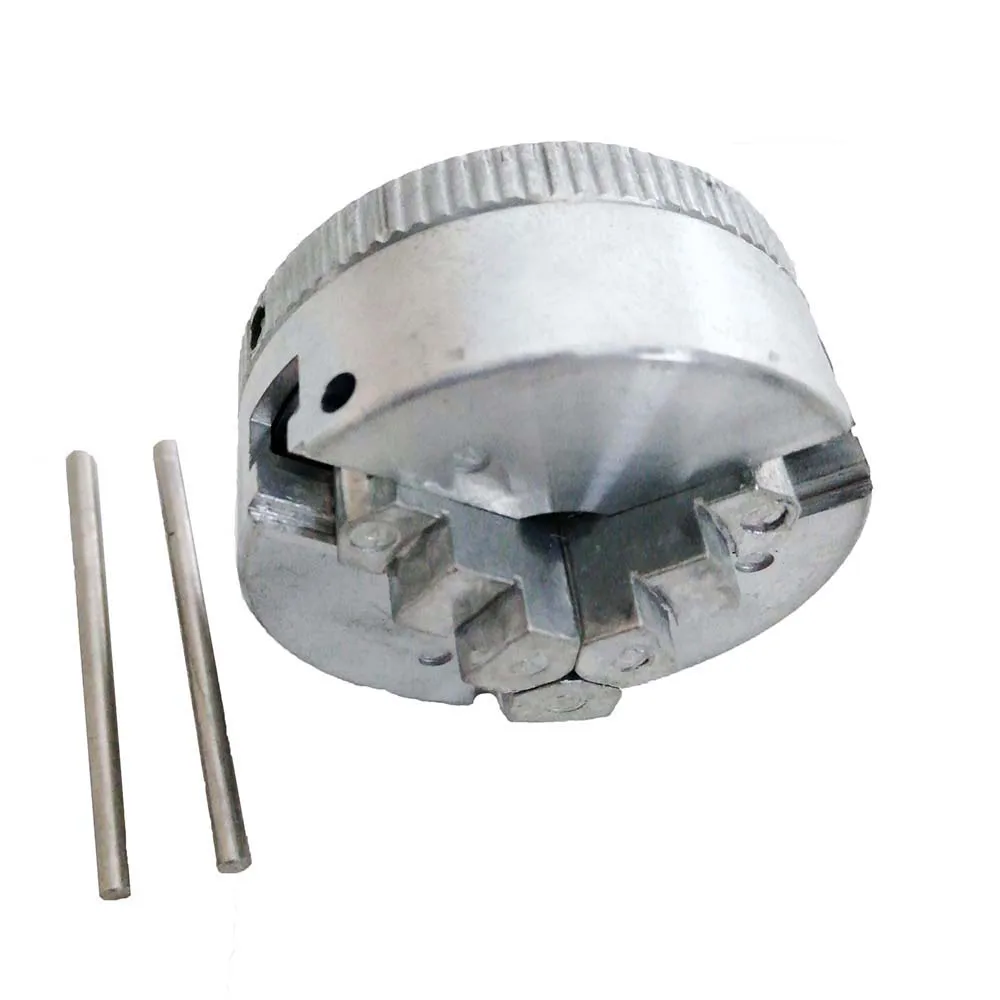

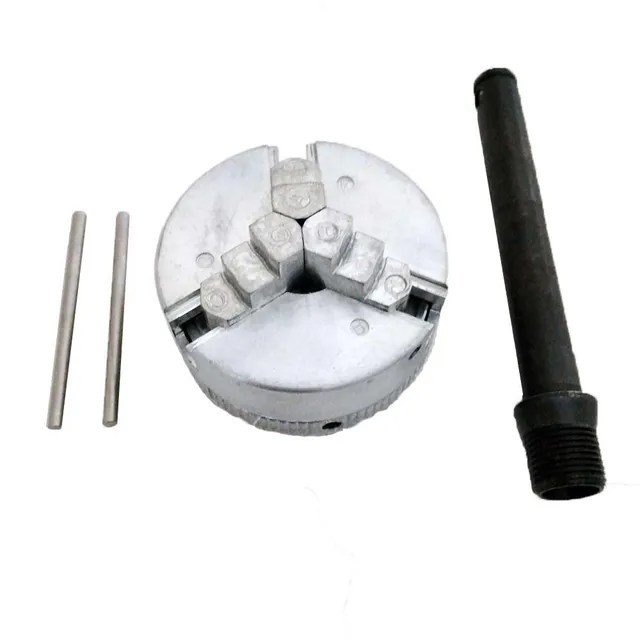

1. Metal three-claw plate Three-jaw self-centering linkage chuck
Use for All Type DIY Mini Lathe Machine
Model: Z011
Chuck diameter: 48mm
The thread: M12*1
Clamping Outside diameter: 12mm~65mm
Clamping Inner diameter: 1.8mm~56mm
Maximum clamping diameter: 20mm
Hole diameter: 10mm
Material: zinc alloy
Uses: fixed solid or hollow round material, triangle material, hexagonal material.
In addition, two locking irons are used to lock the three-claw plate, not the connecting rod! Please note!
Insert the two locking irons into the two small holes of the three-claw plate, rotate the three-claw disk to lock the irons to open or close the three claws, turn the chuck until the three-claws are pushed out, and change the direction of the three-claws to change the three-claw plate. The maximum size of the clamped workpiece.
Note: When installing the three-jaw, the number of the claw should be in one-to-one correspondence with the number on the disk. The three claws should be screwed in the order of A, B and C during installation, and pay attention to the threaded guide inside the three-claw plate. A notch, the notch is screwed to the groove of the A-claw, and the A-claw is screwed onto the groove of the B-claw. The B-claw is screwed to the C-claw of the C-claw. The numbers corresponding to the positive claws are: A-A, B-B, C-C!
When processing large workpieces, you need to use anti-claws. At this time, the order of the claws is: C-A, A-C, B-B! (The reverse claw can be up to 45 mm in diameter!)
