0.49 inch I2C White
Features:
This is a 0.49 inches OLED display module of 64x32resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
Working without backlight, the OLED display module could give out light by itself.
In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.
OLED display module also has a much faster response time than an LCD.
The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.
This is a 0.49 inches OLED display module of 64x32resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
Working without backlight, the OLED display module could give out light by itself.
In low ambient light conditions such as a dark room, an OLED screen can achieve a higher contrast ratio than an LCD.
OLED display module also has a much faster response time than an LCD.
The display with small dimension is suitable for MP3, function cellphone, smart health device, etc.
Specifications:
Display Size: 0.49in
Resolution: 64*32
Text Color: White
Driver IC: SSD1306
Interface Type: IIC
Pin Quantity: 4Pin
Pixel Size: 0.155*0.155mm
Operating Temperature: -40~85℃
Working Voltage: 3.3V-5V
Display Size: 0.49in
Resolution: 64*32
Text Color: White
Driver IC: SSD1306
Interface Type: IIC
Pin Quantity: 4Pin
Pixel Size: 0.155*0.155mm
Operating Temperature: -40~85℃
Working Voltage: 3.3V-5V
Package included:
1 x 0.49″ inch White OLED Display Module 64×32 SSD1306 IIC I2C Screen For Arduino
1 x 0.49″ inch White OLED Display Module 64×32 SSD1306 IIC I2C Screen For Arduino
0.69 inch I2C White
Product Introduction:
Size: 0.69 inch
Control chip: SSD1306
Resolution: 96 * 16
Display area: 17.26×3.18mm
Physical size: 32.54x10x2.5mm
Interface type: IIC interface
Number of pins: 4Pin
Working voltage: 3.3V-5V
Display color: White
Pixel size: 0.16×0.18mm
Operating temperature: -40~85℃
Size: 0.69 inch
Control chip: SSD1306
Resolution: 96 * 16
Display area: 17.26×3.18mm
Physical size: 32.54x10x2.5mm
Interface type: IIC interface
Number of pins: 4Pin
Working voltage: 3.3V-5V
Display color: White
Pixel size: 0.16×0.18mm
Operating temperature: -40~85℃
Package included:
1 x 0.69″ inch 96×16 SSD1306 IIC I2C Screen White OLED Display Module For Arduino
1 x 0.69″ inch 96×16 SSD1306 IIC I2C Screen White OLED Display Module For Arduino

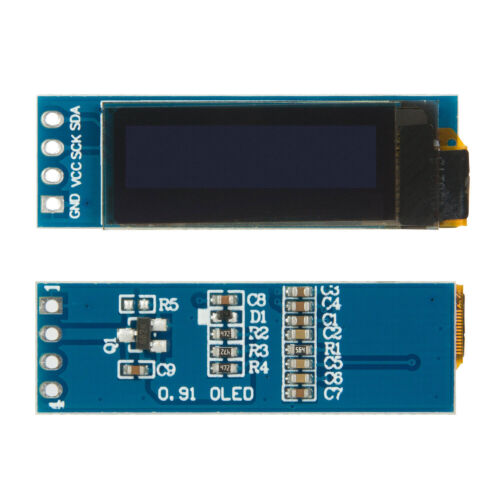

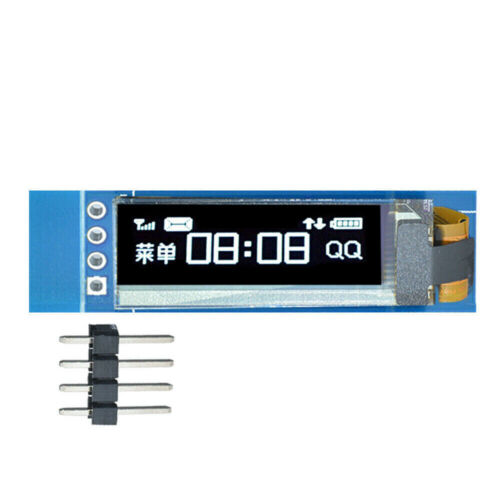

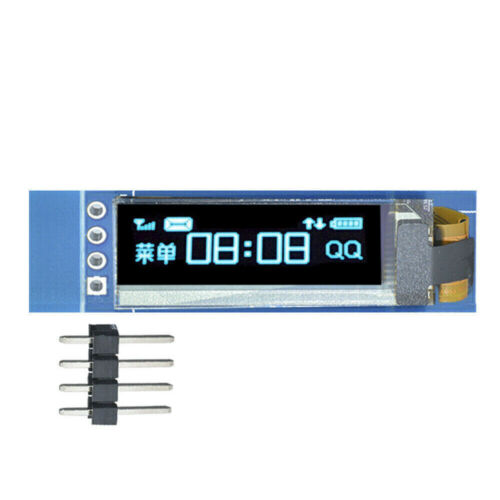

0.91 inch I2C White/Blue
Description:
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
IIC interface
Display Color: White/Blue （Optional）
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
IIC interface
Display Color: White/Blue （Optional）
Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Package Content:
1 X 0.91 Inch OLED LCD Display Module
1 X 0.91 Inch OLED LCD Display Module
0.91 inch SPI White/Blue
Features:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Font Color: White/Blue（Optional）
Voltage: DC 3.3-5V
PIN Interface: SPI
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Font Color: White/Blue（Optional）
Voltage: DC 3.3-5V
PIN Interface: SPI
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
SPI Pin definition:
GND: Power ground
VCC: Power
CLK: Clock line
MOSI: Data cable
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
GND: Power ground
VCC: Power
CLK: Clock line
MOSI: Data cable
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
Packaged included:
1 x 0.91″ OLED 128×32 SPI LCD Display Module
1 x 0.91″ OLED 128×32 SPI LCD Display Module

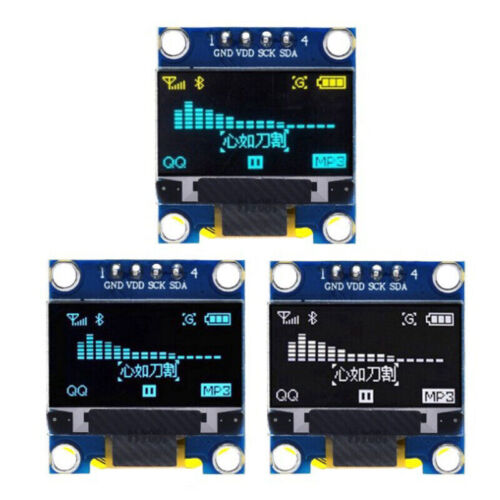

0.96 inch I2C White/Blue/Yellow and Blue
Description:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Character Colors: White/Blue/Yellow and Blue(Optional)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ℃ ~ 70 ℃
Character Colors: White/Blue/Yellow and Blue(Optional)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
1 * 0.96″ I2C IIC Serial 128X64 White OLED LCD LED Display Module for Arduino
0.96 inch SPI White/Blue/Yellow and Blue
Features:
Needn’t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 c ~ 70 c
Module Size: 27.3MM *27.8MM
Color:White/Blue/Yellow and Blue(Optional)
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Needn’t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 c ~ 70 c
Module Size: 27.3MM *27.8MM
Color:White/Blue/Yellow and Blue(Optional)
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Package Included:
1 x 3-5V 0.96″ SPI Serial 128X64 OLED LCD LED Display Module
1 x 3-5V 0.96″ SPI Serial 128X64 OLED LCD LED Display Module
1.3 inch I2C White/Blue
Product Introduction:
1.Size:1.3 inch
2.Resolution:128*64
3.Controlling Chip:SH1106
4.Display Area:29.42*14.7mm
5.Driving Voltage:3.3-5V
6.Operating Temperature:-40~70 celsius
7.Interface Type:IIC
8.Light Color:White/Blue(Optional)
Pin Definition:
1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
Package Included:
1*1.3″ OLED LCD Display Module IIC I2C Interface 128×64 3-5V For Arduino
1.3 inch SPI White/Blue
Specifications:
1.Neednt backlight the display unit can self-luminous
2.High resolution:128*64
3.Viewing angle:>160
4.OLED screens inside the driver chips : SSH1106
5.Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
6.Ultra-low power consumption:full screen lit 0.08w
7.Voltage 3v-5vdc
8.Work temp : -30c-70c
9.Spi interface
10.The color of word : White/Blue(Optional)
1.Neednt backlight the display unit can self-luminous
2.High resolution:128*64
3.Viewing angle:>160
4.OLED screens inside the driver chips : SSH1106
5.Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
6.Ultra-low power consumption:full screen lit 0.08w
7.Voltage 3v-5vdc
8.Work temp : -30c-70c
9.Spi interface
10.The color of word : White/Blue(Optional)
Pin Description:
1.GND: Power ground
2.VDD:2.8-5.5V power supply
3.SCK: CLK clock
4.SDA: MOSI data
5.RES: Reset
6.DC: data / command
7.CS: chip-select signal
1.GND: Power ground
2.VDD:2.8-5.5V power supply
3.SCK: CLK clock
4.SDA: MOSI data
5.RES: Reset
6.DC: data / command
7.CS: chip-select signal
Package included:
1x OLED Display Module for Arduino
1x OLED Display Module for Arduino
