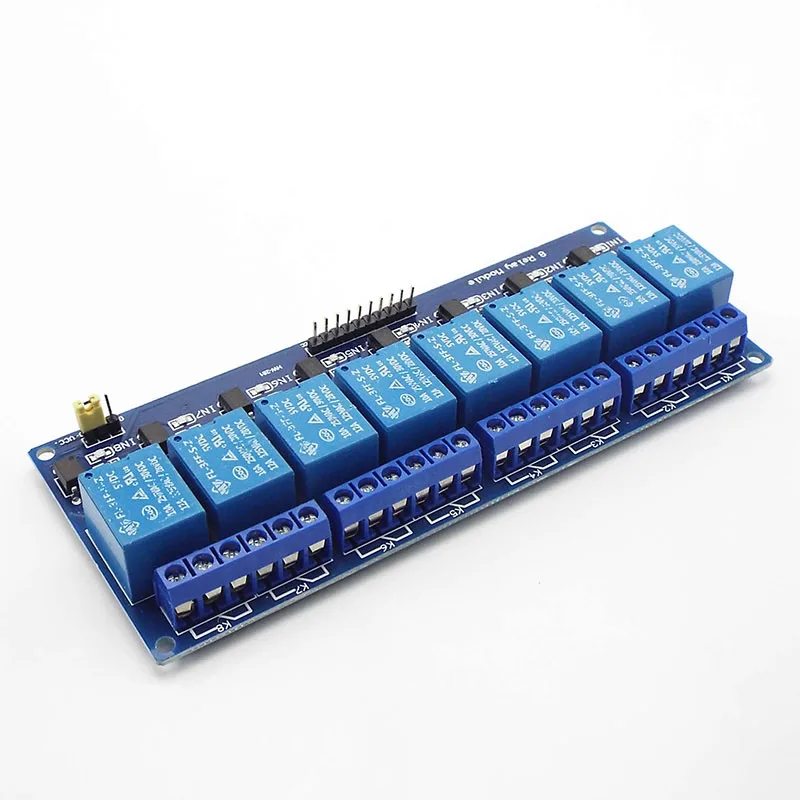

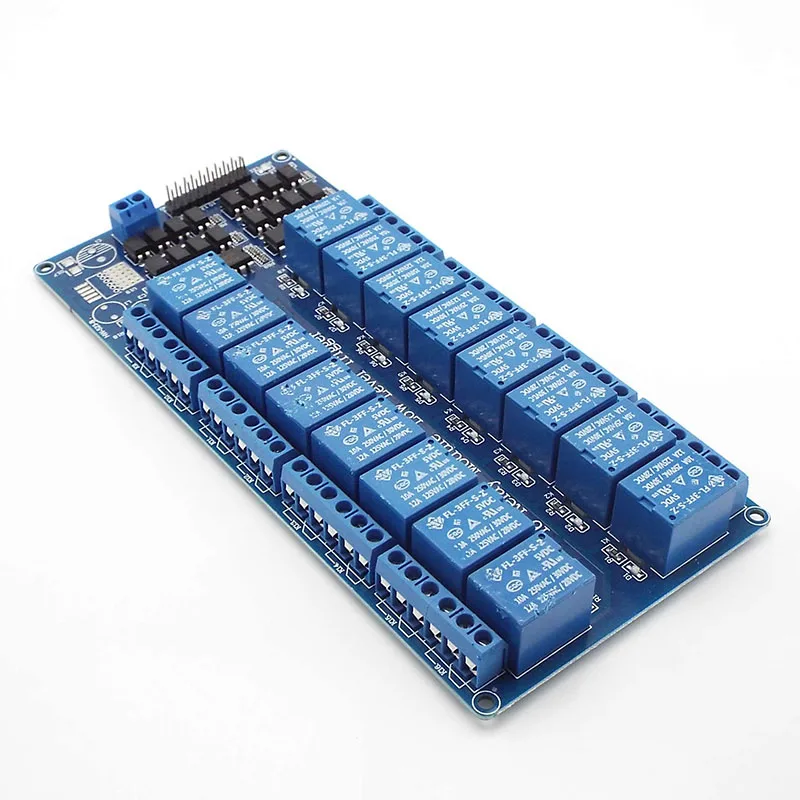

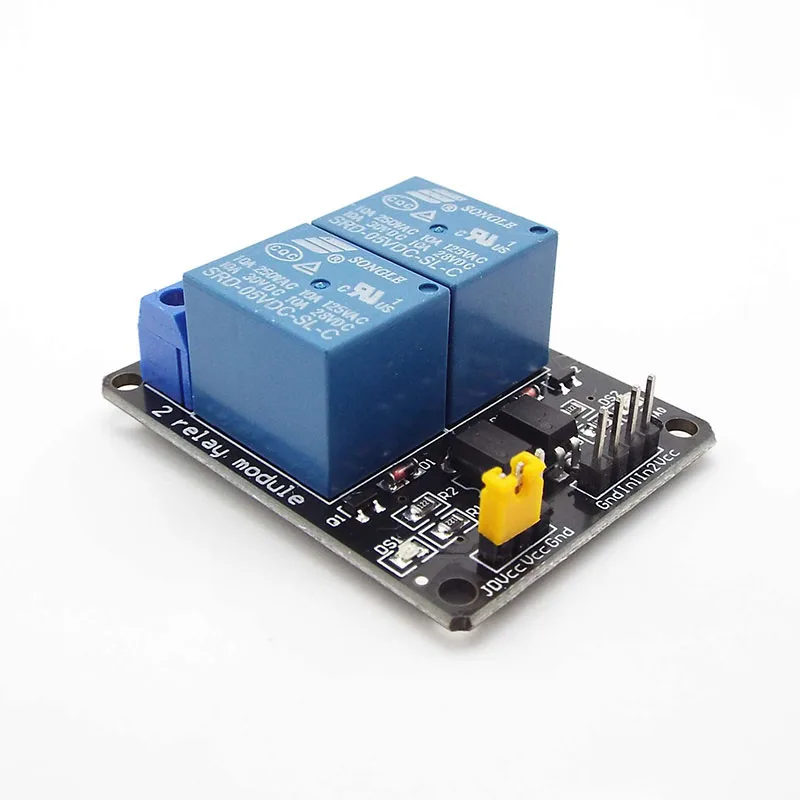

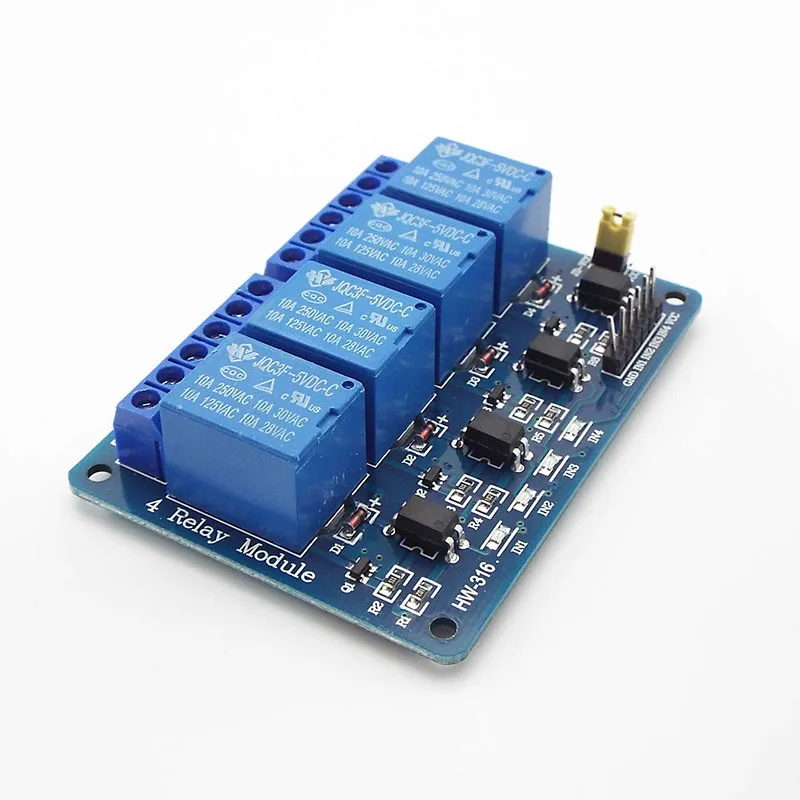

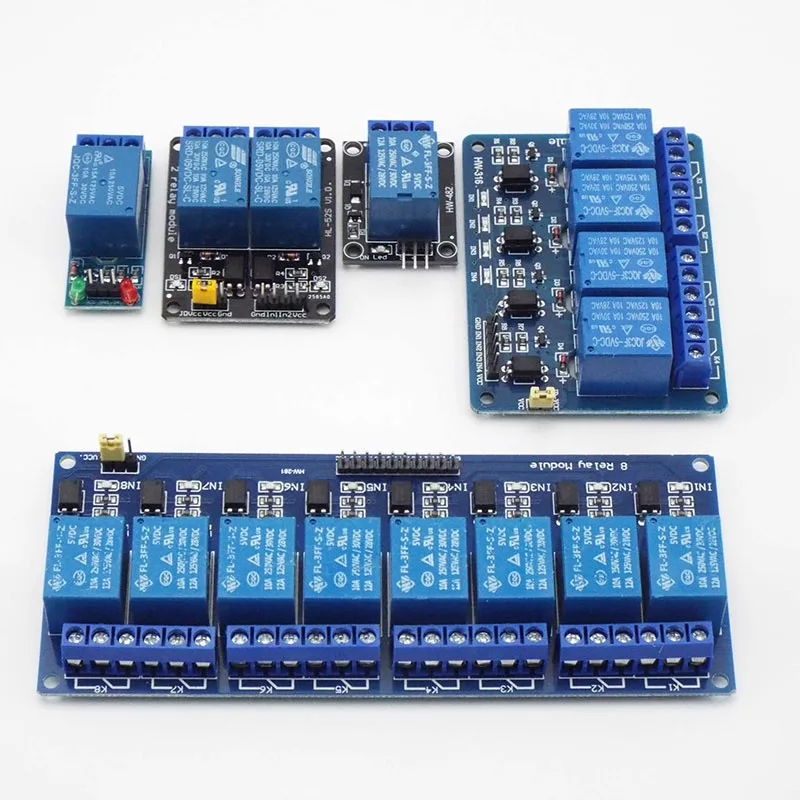

DC 5V 12V Relay Module With Optocoupler Relay Output 1 2 4 8 16Way Relay Module For Arduino dc5v dc12v 1 2 4 8 16 way
Module Parameters:
There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
The relay uses high quality Songle relay, single pole double throw. a common end, a normally open end, and a normally closed end
Optocoupler isolation, good anti-interference

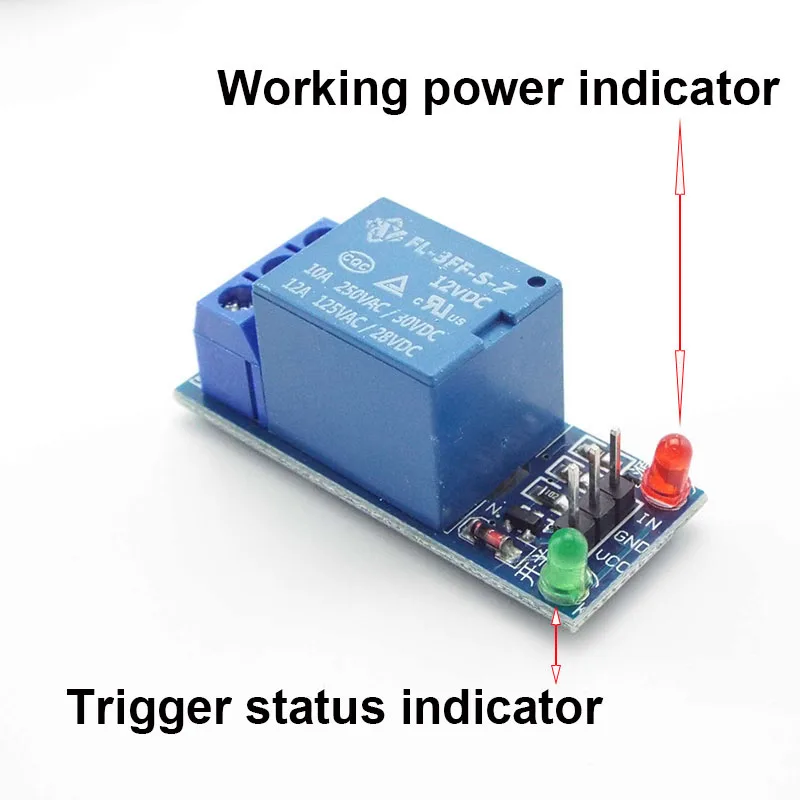

Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
VCC is the system power supply, and JD_VCC is the relay power supply. Plug in the jumper cap
Electrical parameters:
Supply voltage: 5VDC/12VDC
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring instructions:
VCC: system power supply positive
GND: system power supply negative
IN1–IN2: Relay Control Por
