Product Description
Don’t Need Wireless? We’ve Got You Covered!
Why pay for Bluetooth or Wi-Fi technology when you don’t need it? The new USB-Link 3: Wired Edition provides a secure connection with all the same great features, and speed, as our wireless versions. And it’s compatible with the same wide range of OEM software applications too. A wired vehicle communication interface is also handy to have on hand when Internet connectivity is not available (for example, when you need to service a vehicle in the field, or in a remote part of your lot).
Quick Start Guide
This kit includes a quick start guide to help you get up and running fast. This guide provides a high-level overview of the installation and setup process including:
- Installing drivers and device tester
- Connecting the USB-Link 3 to a vehicle
- Testing the connection
Nexiq USB-Link 3 Wired Edition Bundle
Everything you need to get started!

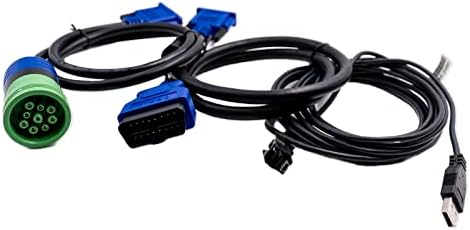

This Kit Includes:
- USB-Link 3 Wired VCI
- Nexiq Carrying Case
- Latching USB Cable (404032)
- 9 Pin Deutsch Adapter (493128)
- J1962 Adapter (16 Pin OBD II, 491113)
- Diesel Repair Professional (90 Days)
- Diesel Explorer Software
- Quick Start Guide

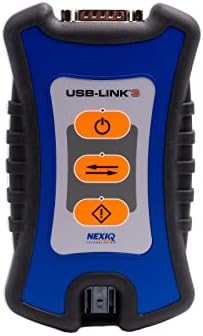

About the USB-Link 3
The Nexiq USB-Link 3 PC-to-vehicle interface is compatible with multiple software applications, minimizing your investment in multiple brand-specific diagnostic interfaces. The USB-Link 3 vehicle communication interface (VCI) comes standard with sixteen times more random access memory than previous versions, and they support heavier bus loads on simultaneous channels.
At Diesel Laptops, we’ve sold thousands of USB-Links throughout the years. Rugged and dependable, the USB-Link brand has long been the industry leader in vehicle communication interface technology.
Includes Diesel Explorer
Only available from Diesel Laptops
This software will read all DTCs and faults from all standard vehicle modules including body controller, engine controller, transmission controller, and more. You’re also able to view live data, trip information, and HD-OBD readiness information. Diesel Explorer even has built-in reporting so you’re able to do a quick check on the vehicle’s health.
Information on DTCs
Clearly see all active and inactive codes along with code information such as the SPN, FMI, and even a description. Easily view the total count of your codes as well as refresh and clear them.
Features
- Read DTCs and Fault Codes
- View Component Information
- Access Vehicle and Trip Data
- View Parameters
- Built In Reporting
Includes Diesel Repair Professional
Diesel Repair is your commercial truck repair information platform. You’ll find everything you need for commercial trucks including step-by-step fault code troubleshooting, wiring diagrams, labor time guides, recalls, remove and replace instructions, VIN decoder, maintenance intervals, and much more.
Diesel Repair has been carefully curated by experienced industry experts. Our goal is to provide users with commercial truck repair information that is easily accessible, easy to navigate, and easy to understand.
Diesel Repair has broken down the barrier to deliver you access to the commercial truck repair information you that you need.
Specs and Compatibility
Protocol Support
- CAN FD / J1939 FD / ISO15765 FD
- Single wire CAN (SWCAN)
- ISO 11898-3 Fault Tolerant CAN (FTCAN)
- J1708 & J1850 VPW (Class 2)
- ISO PWM (SCP) & ISO 9141 / KWP2000 (ISO 14230)
- ALDL 9600 and 8192 baud
- ATEC 160 baud
API Support
- Windows Vehicle Communication API
- RP1012 a/b/c
- J2534 (2004 draft)
- J2534-1
OEM Compatibility
Works with a wide range of OEM software, including:
- Detroit Diesel Diagnostic Link
- CAT Electronic Technician (On-Highway only)
- Cummins Insite
- International – ABS, DLB, Intune, IPC, ServiceMAXX Fleet Pro
- Hino eXplorer
- Volvo PTT & VCAD Elite Mack/Volvo
- Allison DOC
- And more, including Eaton ServiceRanger, Bendix ACom, WABCO Toolbox, Freightliner ServiceLink, and PACCAR DAVIE4
|
|
|
|
 |
|
|---|---|---|---|---|---|
|
USB Link 3 Wireless Edition |
USB Link 3 Wired Edition |
USB Link 2 Wired Edition |
USB Link 2 Bluetooth Edition |
USB Link 2 Wi-Fi Edition | |
| USB Vehicle-To-PC Connectivity | ✓ |
✓ |
✓ |
✓ |
✓ |
| Bluetooth Connectivity | ✓ |
✓ |
|||
| WiFi Connectivity | ✓ |
✓ |
|||
| Windows 10/11 Compatible | ✓ |
✓ |
✓ |
✓ |
✓ |
| iOS Compatible | ✓ |
||||
| Android Compatible | ✓ |
||||
| Supports CAN FD Protocol | ✓ |
✓ |
|||
| Supports Diagnostics Over Internet Protocol (DoIP) | ✓ |
||||
| RP1210 Compliant | ✓ |
✓ |
✓ |
✓ |
✓ |
| Works With Diesel Explorer | ✓ |
✓ |
✓ |
✓ |
✓ |
