Attention:
– Before loading, please adjust angle without load first, mechanical jam will cause gear damage.
– Please test various application scenarios by yourself, and use them after passing the tests. For various dangerous application scenarios, we are not responsible for accidents in various application scenarios!
– Battery is not included.
Features:
* Applicable to servo controllers, model airplane remote controllers
* Alloy gear high torque motor
* Ultra-lightweight aluminum alloy gearbox
* Easy to install, durable, reliable, stable and practical to use
Applications:

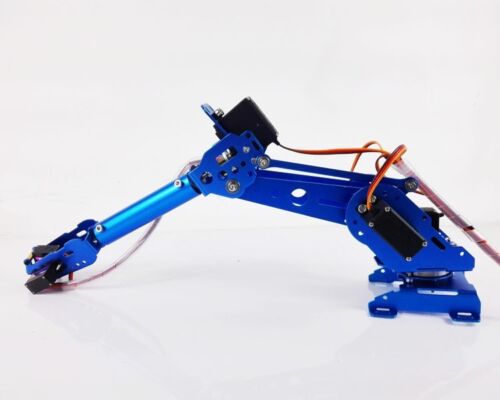

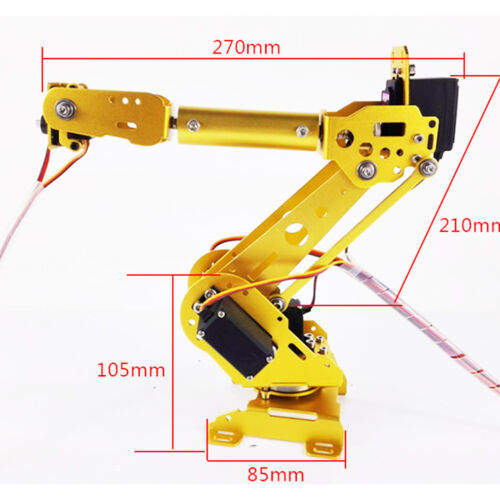

* Large robots, mechanical arm power joints
* Industrial robot automation
* Precise control of valve angle
*Large camera PTZ
* Large remote-control car models, remote control ship models
Technical Parameters:
– Rated voltage: DC 24V (12V-24V can work, 12V torque and speed are halved)
– No-load current: <500MA (load current 5-10A, it is recommended to use 10A or more than 10A switching power supply or battery, the greater the power supply current output capacity, the better)
– Limit angle: 1200-1700US: about 90 degrees; 500-2500US: about 288 degrees (Pulse width determines the angle. If you need other angles, please increase or decrease pulse width by yourself, the maximum is about 288 degrees)
– Control mode: 1.0-2.0 MS pulse: suitable for model airplane remote control receiver control; 0.5-2.5 MS pulse: suitable for multi-channel steering gear controller control (pulse frequency: 50-333HZ)
– Materials:
* Gears and shafts: alloy steel, hardened steel, aluminum alloy;
* Shell: aluminum alloy
– Servo weight: about 880g
– Speed: 0.5S/60° (equivalent to 20RPM)
– Mechanical life: >300,000 times (370 hours)/(30KG/CM)
– Torque limit: 400KG/CM (Broken gear load, it is not recommended to work at this torque)
– Starting torque: 380KG/CM (short-time work)
– Conventional torque: 140KG/CM (can work for a long time)
Package Included:

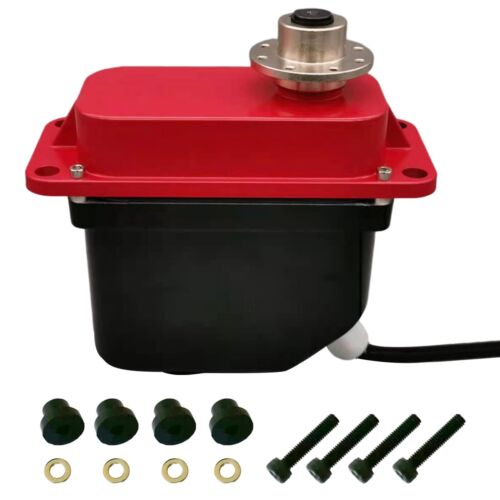

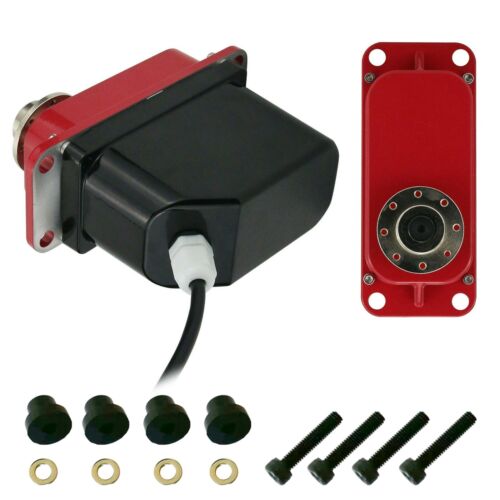

– 1 x Set of Servo
Wiring Video:
v.youku.com/v_show/id_XNDg1NzA3MDEwOA==.html
Video For Demo:
v.youku.com/v_show/id_XNDUyNjE3OTE4NA==.html?spm=a2h3j.8428770.3416059.1
